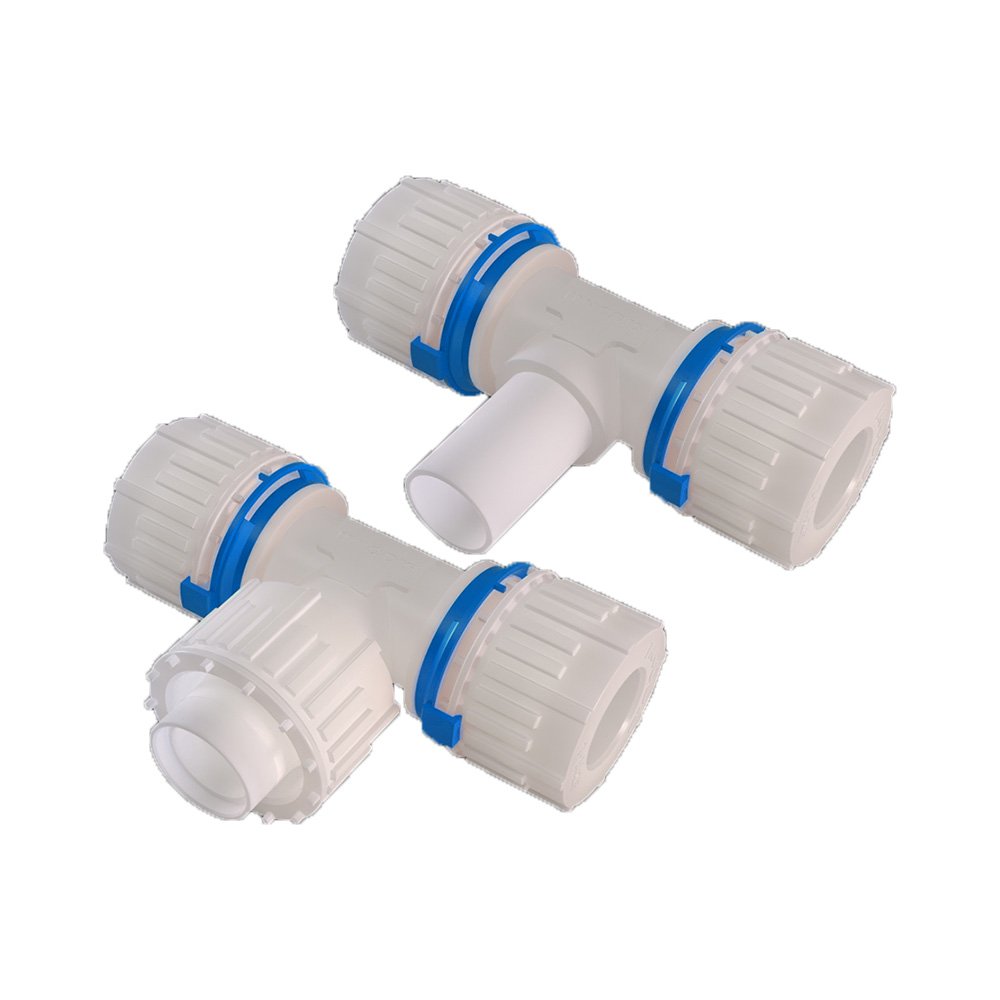

Union tee adapter – Through Mega Lock Type - Metric space saver

Specifications


Max temperature withstand operation: 200ºC
Ambient temperature range: -15°C ~ 60°C
Max pressure in operation: 7kgf/cm²
Fluid: For liquid use only





Space Saver fittings are specially designed to provide reliable, high-performance connections in compact and confined installation areas. Their streamlined design minimizes overall assembly size while maintaining excellent strength, sealing efficiency, and flow characteristics, making them ideal for applications where space optimization is critical.

The range includes reducing union connector adaptors and reducing union elbow adaptors for smooth size transitions, as well as elbow adaptors and tee adaptors to accommodate directional changes and multi-line distribution within tight layouts. The male connector through (ferrule type)ensures a secure, leak-free connection with dependable tube grip and easy installation.

Engineered for durability and precision, Space Saver fittings offer an efficient solution for compact system designs without compromising performance, safety, or reliability.



Benefits


Five-layer sealing structure of slide press-fit type
Lock function to prevent nut loosening with respect to fine vibrations
Compact design
Easily identify Metric (blue) and Inch (red) fitting by color
Improved functionality against PFA tube slippage
No gauge required with the confirmation of the rock gauge groove
No eye marking required with the confirmation of the rock gauge groove
Designed to reduce tightening torque with respect to nut fastening




Sealing

The first sealing is achieved through the force generated by tightening the nut. The second sealing is created by adding grooves to the sleeve’s tapered surface, which prevent indentation from the groove edges. The third sealing results from the pressure applied to the tapered surface as the nut is tightened. The fourth sealing occurs when the tightening force presses both the body taper and the grooved section of the sleeve taper together. Finally, the fifth sealing is achieved as the sleeve is pushed and pressed into the body groove by the force of the nut tightening.

Lock gauge feature


Prevention of nut rotation with respect to vibration
Eye marking not required
