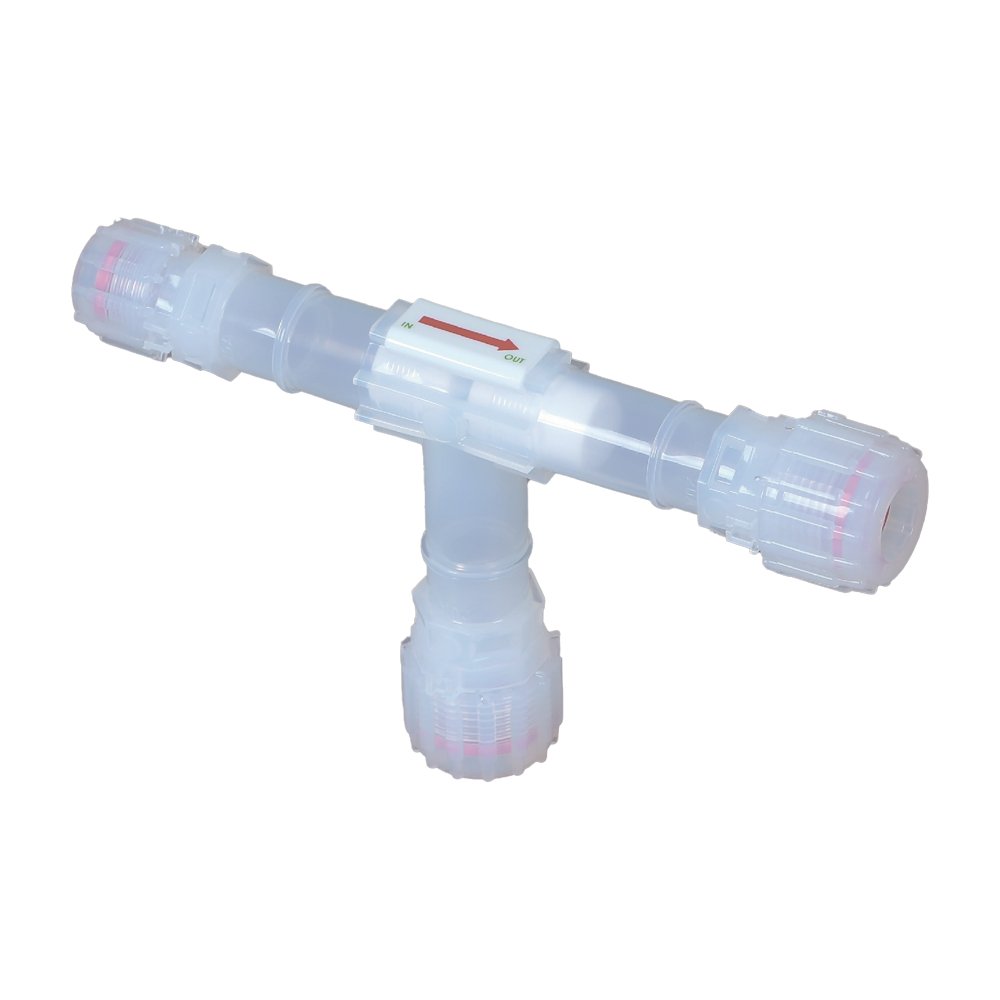

A product that is mounted in a container containing the same chemical as STORAGE VESSEL (A TYPE) and discharges the chemical by DIW pressure.

Material: High Purity Grade PFA (Body), PTFE (Orifice)
Product size: 20A
Operating Pressure: 0.35 - 7 kgf/cm²
Operating Temperature: 0 ~ 90℃

Emissions per Pressure

Pressure           Emissions
1 kgf/cm²        8.6 L/min
2 kgf/cm²       10.8 L/min
3 kgf/cm²       13.5 L/min
