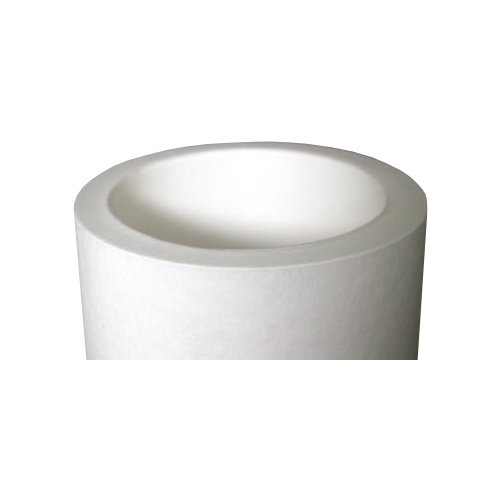

esPRO’s MBC-series multi-media depth filter cartridges are engineered for advanced filtration performance, offering both high-temperature and high-pressure resistance. These depth filters are constructed from a combination of bi-component fibers, providing robust and reliable filtration in challenging environments.

The MBC-series offers multiple configurations to meet specific filtration needs. The standard MBC model combines PP (polypropylene) and PE (polyethylene) fibers, delivering excellent contaminant retention and filtration efficiency in general applications where durability and performance are critical.

The MBCG model adds a layer of glass fiber, achieving an absolute filtration efficiency of 0.5 μm, making it ideal for applications requiring high contaminant retention and fine filtration. The MBCF model includes a layer of hydrophilic PTFE, delivering an absolute filtration efficiency of 0.1 μm, particularly suited for ultra-fine filtration in processes involving water-based fluids.

Constructed with PP+PE as the core filtration media, these filters benefit from the enhanced capabilities provided by the additional layers of glass fiber or PTFE. With a maximum working temperature of 80ºC and a maximum operating differential pressure of 0.48 MPa at 25ºC, the MBC-series filters are designed to perform reliably in high-demand industrial applications.

esPRO’s MBC-series filters provide a versatile and efficient solution for a wide range of filtration challenges, ensuring high contaminant retention, reliability, and long service life.
